Cessna Citation 560 XL

Cessna Citation 560 XL

Conduct your business in the air and get to your destination on time. The Citation XLS can operate out of smaller airports with ease, and provide the comfort and amenities of a mid-size jet. The XLS jet’s cabin offers comfortable room for up to 7  passengers. A spacious interior allows those inside to stand and move about the cabin with ease. The high-quality leather seats are extra wide with full reclining capabilities for optimal comfort. Main cabin can seat 7 passengers in club configuration with divan opposite the cabin door. Toilet is in aft cabin opposite large area for cargo and closet area for supplies.

The Best selling business jet that outperforms your expectations everywhere.

Range————— 2,080nm
Cruise Speed ————-490knots
Service Ceiling———–45,000ft
Seating Capacity——– 7 PAX + 2 CREW

Discover Where A Falcon Can Take You

The Citation XLS combines transcontinental range, first-class cabin comfort for up to 9 passengers and remarkable performance efficiency in a beautiful midsize jet. Loaded with features generally reserved for a large, commercial aircraft, the Citation XLS will take your business global. Sit back and enjoy the ride.

Specifications (How We Measure Success)

  • AIRCRAFT MODEL

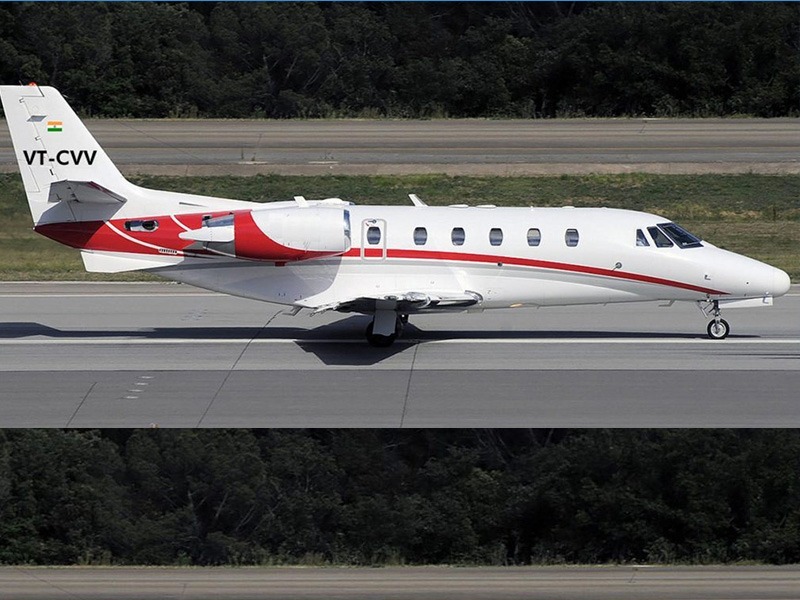

Citation XL VT-CVV

  • OCCUPANCY

Seats: 7 PAX + 2 CREW

  • CABIN DIMENSIONS
  • Maximum Range: 2,100 nm
  • Maximum Cruise Speed: 441 ktas

Performances

Maximum Cruise Speed 441 ktas (817 km/h)
Maximum Range 2,100 nm (3,889 km)
Takeoff Field Length 3,560 ft (1,085 m)
Landing Distance 3,180 ft (969 m)
Maximum Operating Altitude 45,000 ft (13,716 m)
Maximum Climb Rate 3,500 fpm (1,067 mpm)
Maximum Limit Speed 0.75 Mach (0.75 Mach)

External Dimensions

External length: 15.80 m
External height: 5.23 m
Wing span: 17.17 m
Cabin lenght (excluding cockpit and baggage) : 5.64 m
Maximum headroom: 1.73 m
Maximum width
1.68 m
Cabin volume (excluding cockpit and baggage)
13.05 m 3

Weights

Maximum takeoff weight: 9,163 kg
Maximum zero fuel weight: 6,849 kg
Maximum fuel: 3,057 kg
Maximum landing weight: 8,482 kg

Engines & avionics

Manufacturer: Pratt & Whitney Canada
Nbr/Type: 2xPW545B
SL-ISA Thrust: 17.75 kN each engine
Flat rated to: ISA+15°C
  • Dual 8 x 10-inch Primary Flight Displays
  • Dual 8 x 10-inch Multifunction Displays
  • Electronic Flight Information System
  • Crew Alerting System
  • Flight Guidance System
  • Dual Air Data Computers
  • XM Broadcast Weather (U.S.)
  • Emergency Descent Mode
  • Dual Attitude Heading Reference System
  • Integrated Electronic Checklists
  • Electronic Charts
  • Flight Management System
  • Global Positioning System
  • Terrain Awareness Warning System (TAWS)
  • Traffic Collision Avoidance System (TCAS II)
  • Maintenance Diagnostic System

Wherever you are, you have control

INTERIOR 360°Explore the large, spacious cabin of the CitationXLS+ aircraft.
Click and drag to move the camera. Your Citation XLS+ jet will give you instant, accurate and up-to-date weather information for your flight path via the XM WX SATELLITE WEATHER Data Service. This long-range, comprehensive weather detection system provides sharp situational awareness for both pilots and copilots.  With upgraded software, pilots can view satellite imagery with NEXRAD overlays, see Temporary Flight Restrictions (TFR) both in graphical and textual formats, view winds aloft and view cloud-to cloud lightning with strikes data refreshed every five minutes. Images and data are available at any altitude and are processed through a receiver supplied on a Head-Up Display (HUD) technologies which are then stored in the file server unit (FSU) for immediate access.

This aircraft features a Fresh Air System to keep cabin air clean. This system operates by bringing fresh air from outside into the aircraft through the engines. The engines compress and heat the air killing pathogens and germs. The air is then cooled and enters the cabin as cold or warm air before exiting aft.
